HIPPS (High Integrity Pressure Protection Systems)

High Integrity Pressure Protection Systems designed to supplant over pressure      protection traditionally addressed with relief systems.

Engineering design support for any HIPPS application

Compliance with IEC 61508 Edition 2 up to SIL 3

Fast closure times up to 2 seconds

API and ASME valves up to 42”, 2500#

Skid design and fabrication

Valve actuator designs

Full diagnostics capability

Compact manifold design control systems

Hydraulic power units

All instrumentation

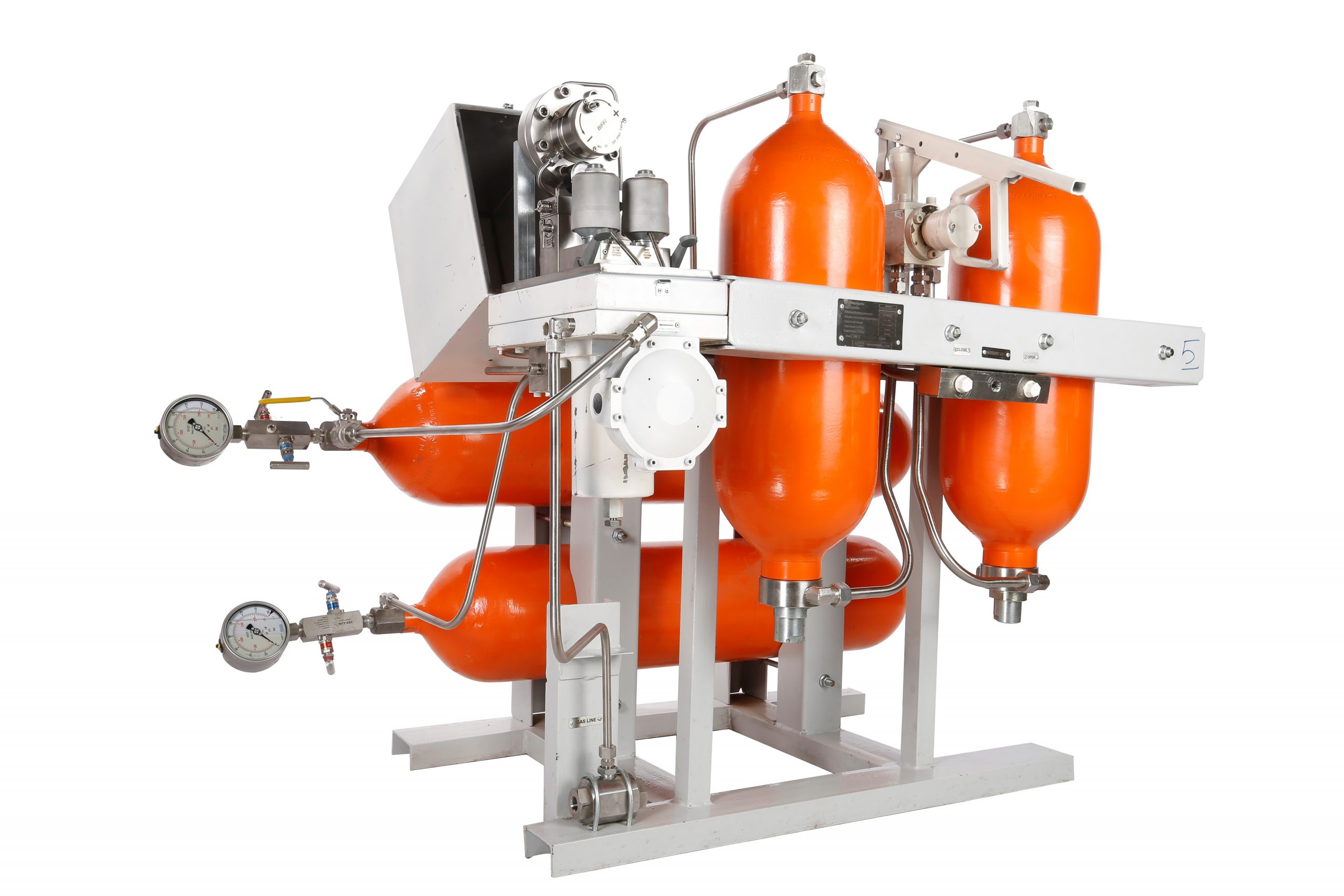

GOV (Gas Operated Valve) & LBV (Line Break Valve)

High performance pneumatic and hydraulic linear/quarter turn valve actuator have be designed to automate pipeline valve.

Design by customers’ needs

From 1" up to 65 " valves actuators can be supplied (-20°c —85°c) (100%

Humidity)

Various packing seals can be supplied. (NBR, Viton, EPDM)

Long lasting components (1 million working cycle guarantees)

Easily convertible design (from single to double acting various power sources

can be applied ( instrument air,  Hydraulic pressure , Nitrogen , gas over oil )

Pneumatic: 2.7 to 12 Barg (40 to 150 psig)

Hydraulic: 13 to 250 Barg (90 to 3,625 psig)

Hurst Output: Up to 289,134 N (65,000 lbf) Temperatures

Metering System

Measurement Solutions sets the standard for global Best Measurement Practices by designing, manufacturing and servicing the precision products and systems used to measure and control liquids and gases in industrial applications.

Metering Systems including Fiscal and Custody

For Gas and Liquid

Multiple meter technologies:

Coriolis, Positive Displacement, Turbine, Ultrasonic Magnetic

Piping Designed to ANSI B31.1/ANSI B31.3 Up to 42", 900#

Strainer, flow computer, shut down Valve, Relief valve

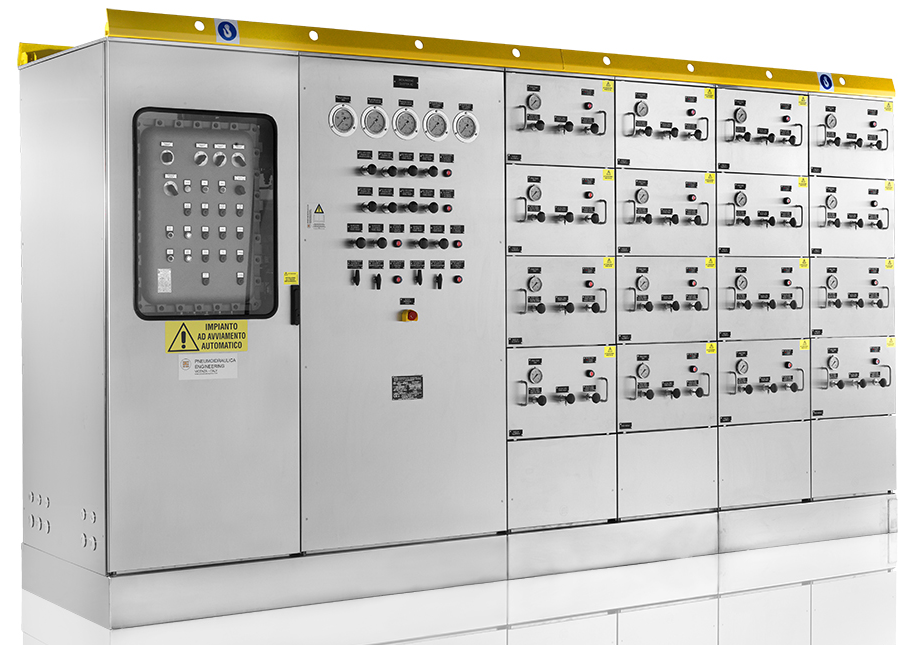

WHCP (Well Head Control Panel)

The following Xmas tree valves are typically controlled by a wellhead control panel:

  • Sub-Surface Controlled Safety Valve (SSCSV)
  • Master Valve (MV)
  • Wing Valve (WV)
  • Choke Valve
  • Riser ESD Valve

Installation: Permanent/Temporary (well test)

Power available: Solar, gas, air, electricity

Hazardous area classification: Zone 0, Zone 1, Zone 2 / Zone unclassified

Level of complexity: Conventional, hybrid, state of the art

Details of valves to be controlled: Pressure levels, swept volumes
